Fracking in Wyoming
Energy • Environment • Fracking • Public education • Higher education • School choice • Charter schools • Public pensions • State budget and finances • Taxes • Voting • Ballot access • Redistricting • Nonprofit regulation
|Fracking in Wyoming|
|Regulatory agency||Wyoming Oil and Gas Conservation Commission|
|Fossil fuels present||Oil, natural gas and coal|
|Number of wells drilled||1,086 in 2013|
|Number of producing wells||34,426 in 2013|
|Other state fracking pages|
|Alabama • Alaska • Arizona • Arkansas • California • Colorado • Connecticut • Delaware • Florida • Georgia • Hawaii • Idaho • Illinois • Indiana • Iowa • Kansas • Kentucky • Louisiana • Maine • Maryland • Massachusetts • Michigan • Minnesota • Mississippi • Missouri • Montana • Nebraska • Nevada • New Hampshire • New Jersey • New Mexico • New York • North Carolina • North Dakota • Ohio • Oklahoma • Oregon • Pennsylvania • Rhode Island • South Carolina • South Dakota • Tennessee • Texas • Utah • Vermont • Virginia • Washington • West Virginia • Wisconsin • Wyoming|
- 1 Fracking background
- 2 History
- 3 Production
- 4 Economic impact
- 5 Environmental impact
- 6 Socioeconomic impact
- 7 Departments, agencies and organizations
- 8 Major organizations
- 9 Natural gas use in Wyoming
- 10 News items
- 11 See also
- 12 External links
- 13 References
Wyoming was ranked seventh in the nation for crude oil production and fifth in the nation for natural gas production in 2013. Despite this, fracking has not yet lead to the wide-scale boom some predicted.
The combination of horizontal drilling and fracking has however, led to increased oil production in the Powder River Basin formation, an area traditionally known for coal production. More than 590 wells have been drilled and completed in the basin since 2009. According to the U.S. Energy Information Administration, production from these wells "is entirely reliant on the application of current petroleum technology."
- See also: Fracking
Hydraulic fracturing, or "fracking," is the process of injecting fluid--mostly water and sand, but with additional chemicals--into the ground at a high pressure to fracture shale rocks and release the oil and natural gas inside.
Recent technological advances in oil and gas drilling--horizontal drilling and hydraulic fracturing--have created a wealth of opportunities and challenges for states with fossil fuel reserves that can be accessed through the combination of these two technologies. The increased use of fracking has been an economic boon for many states, not only those with fracking, but also those with supporting industries, such as frac sand mining or associated machinery manufacturing.
Opponents of fracking argue that the potential negative environmental and human health impacts could be significant. Although wells have been fracked for over 65 years in the United States, concerns have been raised about whether federal, state and local regulatory agencies can keep up with the recent rapid increase in fracking activity, and adequately protect the environment and human health. As with any type of energy extraction, either traditional or renewable, there are economic, environmental and political trade-offs.
The first oil well in the Wyoming Territory was drilled in 1883, marking the beginning of oil exploration efforts in the area. The first oil refinery in the state was built in 1895. Natural gas service in the state dates back to 1908 in Greybull. The first natural gas line in Laramie opened in 1933. The state's first interstate oil pipeline was constructed in 1938 and extended to Denver, Colorado. Although oil production began to diminish somewhat at the close of the 20th century, natural gas and coalbed methane production increased during that time.

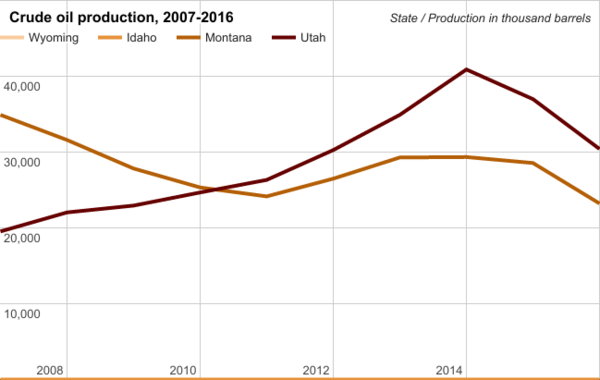

The Wyoming State Geological Survey expects 2014 production to reach more than 66 million barrels of oil and 2 trillion cubic feet of natural gas. A February 2014 report stated that there were 17 oil and gas projects under development that were expected to result in 23,000 new wells. In 2013, Wyoming ranked sixth in the nation for crude oil reserves and third for natural gas proven reserves.
In 1981, the first year for which data are available from the U.S. Energy Information Administration (EIA), 130,563,000 barrels of oil were produced in Wyoming. This is the highest level of production for the years shown. Production declined between 1985 and 2006. In 2006, 52,975,000 barrels of oil were produced. In 2013, the most recent year for which data are available, 63,230,000 barrels of oil were produced.

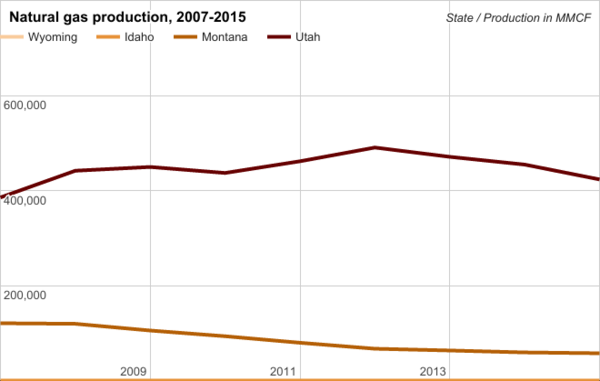

The EIA has natural gas production data dating back to 1989, when 665,699 MMCF of natural gas were produced. Production increased for three years, dropped off for one year, and then increased almost every year from 1993 to 2009. Production peaked in 2009 when 2,335,326 MMCF (2.34 BCF) of natural gas were produced. In 2013, the most recent year for which data are available, 1.89 BCF of natural gas were produced. Coalbed natural gas production accounted for 18 percent of natural gas production in the state in February 2014.
Areas of activity
In 2013, 22 of Wyoming's 23 counties produced oil or natural gas. The only county without production was Teton County. Campbell County was the leading producer of oil in Wyoming in 2012, followed by Park County and Sublette County. Sublette County produced 47.7 percent of the natural gas produced in Wyoming in 2012, Johnson County and Sweetwater County took 2nd and 3rd place for the most natural gas produced in 2012.
The map to the right comes from the Wyoming State Geological Survey. Energy basins are denoted in light beige and the red lines delineate oil and gas development areas. The maps depicts two types of wells that were either spudded or permitted in 2013. Green dots mark horizontal wells, while vertical or directional wells are marked with a black dot.
The use of fracking, often in combination with horizontal drilling, has made it possible to extract supplies of oil and natural gas that were once economically unfeasible to extract. This has led to significant growth in the domestic oil and gas industry, and in the supply of domestically produced oil and natural gas. The growth in activity has impacted the economy in direct ways, such as increased capital investments (from both the U.S. and other countries), royalty and lease payments, and government revenues in the form of fees and taxes. The increased supply of natural gas and oil has also affected electricity prices, manufacturing, service industries and employment. In many places, fracking has increased employment in the mining (oil and gas) sector and supporting industries, such as the restaurant and housing sectors. Consumers and manufacturers have also benefitted thus far from lower oil and natural gas prices, and increased demand for pipeline, drilling and other ancillary equipment. As demand for natural gas and oil grows, however, prices are expected to rise.
Taxes, fees and revenue
Fracking booms can increase local government revenue through increases in property and sales taxes, which can help compensate for the costs detailed below. The primary revenue streams from fracking -- mineral leasing revenues and severance taxes -- go to state and federal governments.
As of June 2013, Wyoming employed the following oil and gas severance tax:
- "6% of fair market value for natural gas or oil.
- 4% on stripper oil."
Of the revenue collected from this tax 1.5 percent goes to the Permanent Wyoming Mineral Trust Fund. The remaining revenue is split as follows:
- 62.26 percent to the state general fund,
- 15.05 percent to the water development account,
- 4.33 percent to the highway fund,
- 3.88 percent to counties,
- 2.9 percent to the construction and maintenance fund,
- 9.25 percent to cities and towns and
- 2.33 percent to the capital construction account.
The state also has an oil and gas conservation fee of "Up to 8/10 of a mill ($0.0008) of oil and gas market value," which funds the Oil and Gas Conservation Commission. Wyoming also collects a royalty for all petroleum produced on state lands, in addition to receiving half of federal royalty revenue, for oil and gas production on federal lands in that state. The state's royalty rate is 16 2/3 percent.
According to the Petroleum Association of Wyoming oil and gas production contributed $1.9 billion to the state in tax revenue in 2013. A study of the oil and gas industry in Wyoming by the Research and Planning division of the Wyoming Department of Workforce Services stated that the industry generated $532 million in severance taxes in 2012.
Royalties and land sales
The United States is one of the few countries where property owners can own the right to use and build on their land, known as surface rights, but may not own the rights to the minerals located under their property. Depending on the state, the mineral rights may have been sold in the past and may now belong to someone other than the surface owner. In fact, those mineral rights may belong to more than one individual, a company, or many individuals, who now have the right to extract those minerals, and in some states this can happen without the permission of the property owner. This can cause tension between the mineral owner, or whoever is leasing the mineral rights, and property owner.
The federal government doesn't collect data on oil and natural gas royalty and land sales on private land. A 2014 study attempted to estimate these figures and determined that Wyoming (among the lower 48 states) had the seventh most private royalty income in the nation. The study also found that for 2010:
- Private oil revenue was $1,581 million.
- Private natural gas revenue was $2,373 million.
- Estimated royalty income was $494 million.
- Royalty income was 1.9 percent of state average income.
Economic impact studies
Below are studies about the economic impact of the oil and natural gas industry (also categorized as the mining industry in some studies) in Wyoming. Both the author(s) and sponsor(s) of the studies have been listed.
Study for the American Petroleum Institute
|IMPLAN and REMI are two econometric modeling systems used in both the private and public sectors to predict economic outcomes of policy changes. While these systems are widely used and highly respected, their results are theoretical and may not be universally accepted.
Because the oil and gas industry has grown so rapidly, there is not a wealth of data regarding its economic impacts. Instead economists use forecasting models, such as IMPLAN and REMI, to predict the impact increased fossil fuel extraction is having on the economy. These studies usually measure both direct impacts, i.e., the jobs and income being added within the oil and gas industry, and indirect impacts, i.e., jobs created throughout the supply chain. These studies also include induced impact, i.e., jobs created through increased spending due to growth in the industry.
PricewaterhouseCoopers LLP (PwC), a research consulting firm, completed a study for the American Petroleum Institute about the economic impact of the oil and natural gas industry in 2011 in Wyoming. According to the PwC study, the oil and gas industry added $13.02 billion in total value to Wyoming in 2011, including direct, indirect and induced value. Of this, $3.03 billion, or 22.8 percent of the state's total value added, was direct, $2.5 billion was indirect and $1.49 billion was induced. In total, this accounted for 32.9 percent of the state's total value in 2011.
The PwC study attributes 80,040 jobs, or 20.4 percent of employment in Wyoming in 2011, to jobs created directly or indirectly by, or induced from, the oil and natural gas industry. The industry directly employed 32,933 people, or 8.4 percent of total state employment. Indirectly, the industry employed 27,164 people and induced 19,943 jobs.
Direct, indirect and induced labor income, according to this study, was $5.13 billion, totaling 21.3 percent of Wyoming's labor income in 2011. Direct labor income from the mining sector was $2.66 billion, or 11 percent of the state's total. Indirect labor income totaled $1.64 billion and induced labor income was $837.4 million.
Wyoming Department of Workforce Services study
A study of the oil and gas industry in Wyoming by the Research and Planning division of the Wyoming Department of Workforce Services credited the oil and gas industry with employing 25,400 people in 2012. This represents a 5 percent increase over 2002 employment levels. Within this industry the average salary was $56,277, and total wages amounted to $1.4 billion.
According to a report from the Petroleum Association of Wyoming the petroleum industry employed 25,000 people and had a payroll of $1.4 billion in 2013.
Because of the sudden and unprecedented growth in fracking across the United States, getting high-quality, unbiased, state-specific information on the environmental impacts of fracking can be difficult. Most studies that would fit those first two qualifications are government studies that focus on the nation as a whole. As such, much of the information that follows in this section may only apply generally to the state. State-specific information has been added where possible.
As with any type of energy extraction, there are several areas of risk when it comes to air quality. In the case of fracking, these risks include air pollutants such as volatile organic compounds (VOCs) and methane. Some environmental groups have raised concerns that methane could be leaked during the extraction process, resulting in unnecessary pollution. Most of this pollution occurs during the well completion phase. Fracking operations can also emit known carcinogens, which have been linked with increased rates of cancer.
With regard to carbon dioxide, when natural gas is used to generate electricity in power plants, it produces fewer carbon emissions than coal-fired power plants. According to a 2014 study by the National Oceanic and Atmospheric Administration, "as a result of the increased use of natural gas, CO2 emissions from U.S. fossil-fuel power plants were 23% lower in 2012 than they would have been” without the increase in natural gas use. During the extraction process, however, methane is emitted, and methane actually traps 20 times more carbon dioxide than other greenhouse gases. Nevertheless, according to the International Energy Agency (IEA), CO2 emissions in the United States dropped by 3.8 percent in 2012, due in large part to the "increased availability of natural gas, linked to the shale gas revolution."
A 2014 report from the U.S. Environmental Protection Agency found a decrease of 3.3 percent in overall greenhouse gas emissions and a 12 percent decrease in methane emissions from 2011 to 2012. Natural gas extraction is the second largest producer of methane, after cattle.
The central and eastern United States have been experiencing an increased number of earthquakes over the last few years, according to the U.S. Geological Survey (USGS), the government agency responsible for such data. Studies from the USGS have not found fracking directly responsible for this increase in felt earthquakes; however, the USGS is looking into regulations that would use seismic data to determine thresholds dictating when and where fracking can occur. There is a growing body of evidence suggesting that this growth in the number of earthquakes has been caused by the increased use of injection wells to dispose of fracking wastewater. While fracking has been rarely known to cause earthquakes, there is an established scientific link between earthquakes and the disposal of fluids in deep, underground injection wells. Once a well has been fracked, the water returned to the surface is called wastewater, and contains large amounts of salt and other contaminants. Some of this water can be recycled, but that water which can't be recycled is often stored in injection wells. These injection wells are generally considered the safest and most cost-effective place for wastewater to be stored. Injection wells are located thousands of feet underground and are encased in cement. Multiple drilling wells often rely on one disposal well for wastewater storage. The U.S. Environmental Protection Agency estimates there are 144,000 of these wells across the United States receiving 2 billion gallons of frack fluid per day.
Induced seismology, or man-made earthquakes, have been around for decades and can be caused by mining, damming rivers and injecting fluids into underground wells. Earthquakes are caused by injection wells when water pumped into underground wells causes the faults under the earth to slip. Even though scientists at the USGS have been able to cause earthquakes intentionally by carefully injecting liquid into the earth, the link between injection wells and earthquakes is not fully understood. One of the largest concerns for scientists and regulators is that they do not have the tools to predict whether wastewater will cause seismic activity. These concerns are compounded by the lack of knowledge about where faults are located across the central and eastern United States. The USGS is just beginning to map these areas in more detail in order to understand the seismic risks. As of June 2014, these earthquakes have typically been small, two or three in magnitude on the Richter scale, but at least one scientist has raised concerns that earthquakes could grow in intensity if old injection wells continue to be used for storage.
When it comes to water protection and fracking there are four main areas of risk: the depletion of fresh water sources, spills and leaks of fracking fluid into water, mismanaged produced water and flowback, and stormwater pollution. Stormwater, flowback, produced water and wastewater can be harmful because they contain total dissolved solids and naturally occurring radioactive materials. Because of the recent rapid growth in fracking, there are still many uncertainties about the effects of fracking on water. There are studies that link fracking to groundwater contamination, but they remain controversial. The U.S. Environmental Protection Agency is releasing a report in spring 2015 on the potential impacts of fracking on drinking water, and is working on effective programs for managing these potential risks.
One of the main criticisms of fracking is that the process uses a disproportionately large amount of water. Up to 10 million gallons of fresh water may be required to frack one well. A 2014 study from the Bureau of Economic Geology at the University of Texas found, however, that the amount of water used in a traditional well, versus a hydraulically fractured well, is not appreciably different. According to one of the researchers, Dr. Bridget Scanlon, "The water used to produce oil using hydraulic fracturing is similar to the water used in the U.S. to produce oil using conventional techniques." The only difference between the amount of water used during the two oil or gas production techniques, is when in the process water is used. The study was funded by the Alfred P. Sloan Foundation.
Because of the recent, rapid growth of fracking, little is known about the potential impacts to human health. Government agencies dealing with human health issues have raised concerns about some chemicals that can be released during the fracking process, including VOCs. The Centers for Disease Control are working with the EPA and federal, state and local agencies to better understand potential impacts.
Fracking can also present challenges to communities. Increased oil and natural gas production happens in boom or bust cycles, and often these cycles disproportionately occur in rural communities. Large scale fracking booms can also lead to increases in crime, such as substance abuse, sex trade and domestic abuse. An influx of oil and gas workers also strains housing and traffic resources. This lack of housing can push oil and gas workers into so-called 'man camps,' which are "clusters of mobile homes, RVs, and trucks," or into hotels. A fracking boom also puts heavy traffic on roads, which can strain infrastructure, increase traffic accidents, and increase the likelihood of oil spills. Local governments respond by hiring more police, social workers, health care workers and emergency response personnel, thereby spending more of their budgets on roads and social programs. Currently, much of the tax revenue generated by the oil and gas industry goes to the federal and state government, not the local governments.
Departments, agencies and organizations
- The Wyoming Oil and Gas Conservation Commission regulates the state's oil and natural gas industry. The commission identifies its most important functions as follows:
—Wyoming Oil and Gas Conservation Commission
As of January 2013 the commission had 12 inspectors who were responsible for 3,100 wells each.
- The Wyoming Department of Environmental Quality (WYDEQ) is the state's environmental protection agency. The department was established in 1973 as a result of the passage of the Environmental Quality Act. WYDEQ is responsible for "monitoring, permitting, inspection, enforcement and restoration/remediation activities which protect, conserve and enhance the environment while supporting responsible stewardship of [the state's] resources." The department includes the following regulatory divisions:
- Abandoned Mine Land
- Air Quality
- Industrial Siting
- Land Quality
- Solid and Hazardous Waste
- Water Quality
- The Petroleum Association of Wyoming (PAW) is a non-profit organization and trade group that represents the state's oil and natural gas industry. The group was founded in 1910. PAW is listed as a "cooperating association" by the Independent Petroleum Association of America, which is a national trade group that "advocates its members' views before the U.S. Congress, the Administration and federal agencies."
- The Wyoming Chapter of the Sierra Club is a statewide chapter of the Sierra Club, an environmental advocacy group founded in 1892. The group's stated mission is "to explore, enjoy and protect the wild places of the earth; to practice and promote the responsible use of the earth's ecosystems and resources; to educate and enlist humanity to protect and restore the quality of the natural and human environment; and to use all lawful means to carry out these objectives." The national group has voiced opposition to fracking.
Natural gas use in Wyoming
- For more information on energy consumption in Wyoming, see "Energy policy in Wyoming"
In 2011, 58 percent of the energy consumed in Wyoming was in the industrial sector. Transportation accounted for one-fifth of the state's energy consumption; the rest was used mostly in residential and commercial buildings for heating, cooling, lighting and other functions. Most of the energy used in the state is in the form of coal, followed by natural gas and oil.
|Consumption of energy for heating homes in Wyoming|
|Source||Wyoming 2011||U.S. average 2011|
|Liquid Petroleum Gases (LPG)||10.3%||5%|
Wyoming produced 10,353 trillion BTU of energy in 2011. Of that, nearly three-fourths came from coal and just under a quarter came from natural gas. The rest accounted for less than one-half of one percent and came from crude oil, biofuels and what the U.S. Energy Information Administration classifies as 'other' renewable energies.
Natural gas and petroleum generate only minor amounts of electricity, although some new natural gas-fired capacity is being built to replace aging coal units. Most power from natural gas and petroleum is generated and consumed at industrial facilities.
|Where electricity comes from in Wyoming|
|Type||Amount generated (MWh)||% of state**||% of U.S.**|
|Total net electricity generation||4,514||100%||0%|
|**Note: Because the U.S. Energy Information Administration (EIA) does not include all of a state's energy production in these figures, the EIA totals do not equal 100 percent. Instead, we have generated our own percentages.|
